OpenStack 설치 학습서#

7. Neutron#

OpenStack Networking service는 인터페이스 장치를 생성하고 네트워크에 연결을 위한 서비스이며, 해당 서비스는 Neutron이라 합니다. 또한, Neutron이 제공하는 Plug-in은 다양한 네트워킹 장비와 소프트웨어를 수용합니다.

Neutron은 Keystone, Glance, Placement, Nova 설치 이후에 설치하는 서비스입니다. Controller node에는 neutron-server 등을 설치하고, Compute node는 plug-in 및 agents 등을 설치합니다.

본 학습서에서는 공식문서의 Networking Option 2: Self-service networks를 적용합니다.
따라서, 이 예제에서 설치된 Neutron은 Layer-3(라우팅) 서비스기반으로 가상 네트워크를 제공합니다.

• Controller node

  • 사전설정

    CONTROLLER_IP=192.168.0.150
    OPENSTACK_PASSWORD=passwds

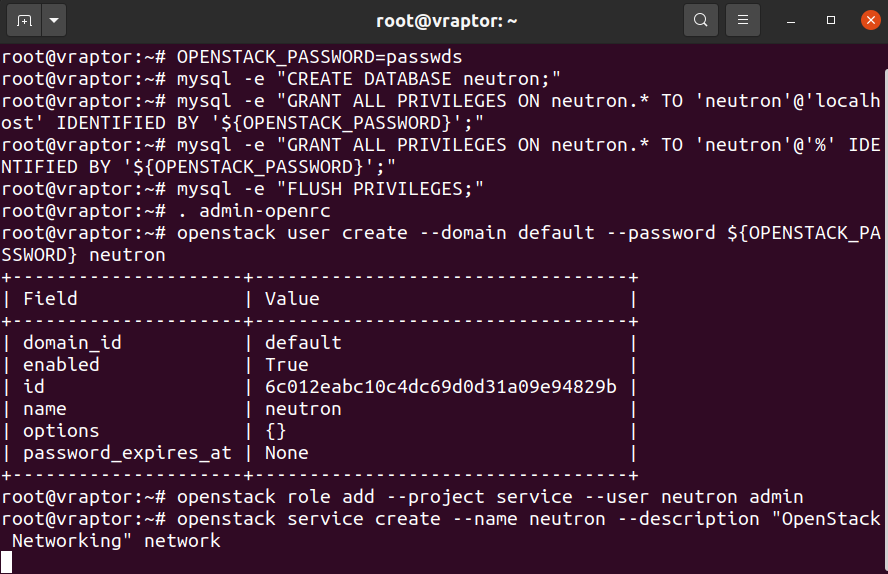

  • 데이터베이스에 서비스 생성

    mysql -e "CREATE DATABASE neutron;"
    mysql -e "GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' IDENTIFIED BY '${OPENSTACK_PASSWORD}';"
    mysql -e "GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%' IDENTIFIED BY '${OPENSTACK_PASSWORD}';"
    mysql -e "FLUSH PRIVILEGES;"


  • admin 커맨드 액세스

    . admin-openrc


  • 서비스 자격 증명 및 생성

    openstack user create --domain default --password ${OPENSTACK_PASSWORD} neutron
    openstack role add --project service --user neutron admin
    openstack service create --name neutron --description "OpenStack Networking" network


    •

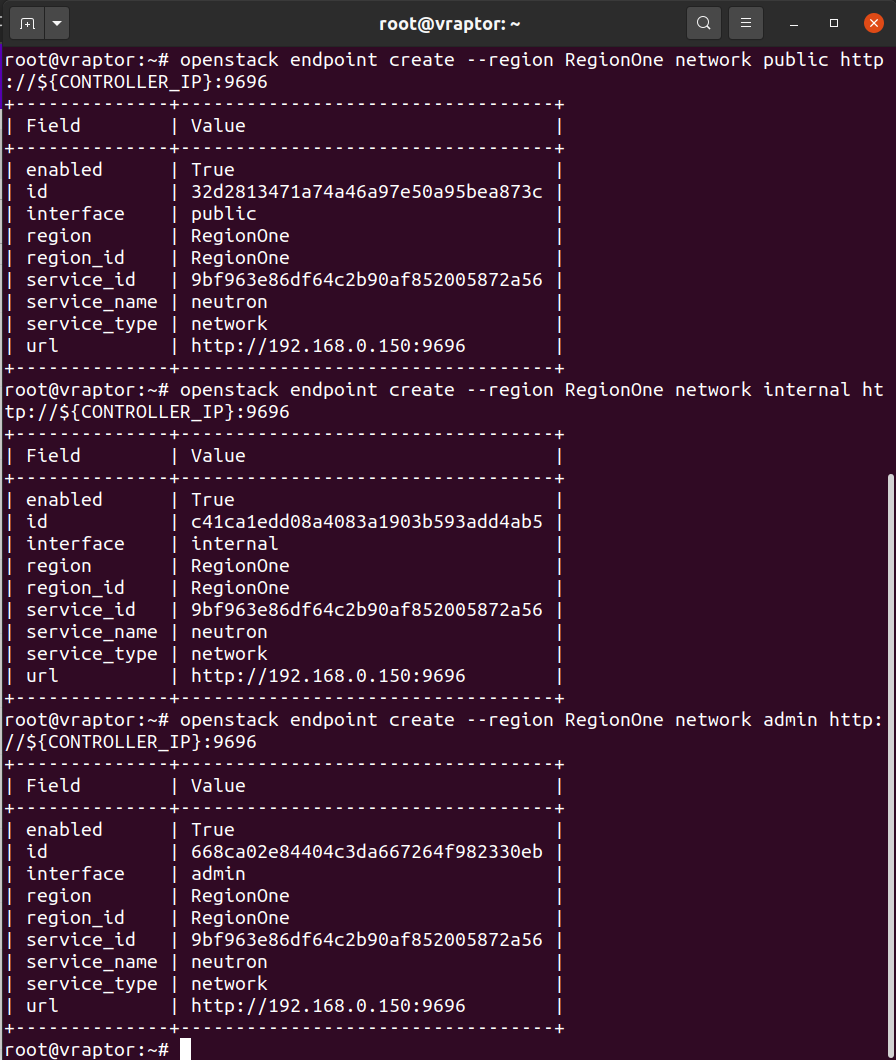

  • API 엔드포인트를 생성

    openstack endpoint create --region RegionOne network public http://${CONTROLLER_IP}:9696
    openstack endpoint create --region RegionOne network internal http://${CONTROLLER_IP}:9696
    openstack endpoint create --region RegionOne network admin http://${CONTROLLER_IP}:9696


    •

  • 패키지 설치 및 설정

    apt install -y neutron-server neutron-plugin-ml2 neutron-linuxbridge-agent neutron-l3-agent neutron-dhcp-agent neutron-metadata-agent

    # neutron.conf 파일 수정
    crudini --set /etc/neutron/neutron.conf database connection mysql+pymysql://neutron:${OPENSTACK_PASSWORD}@${CONTROLLER_IP}/neutron
    crudini --set /etc/neutron/neutron.conf DEFAULT core_plugin ml2
    crudini --set /etc/neutron/neutron.conf DEFAULT service_plugins router
    crudini --set /etc/neutron/neutron.conf DEFAULT allow_overlapping_ips true
    crudini --set /etc/neutron/neutron.conf DEFAULT transport_url rabbit://openstack:${OPENSTACK_PASSWORD}@${CONTROLLER_IP}
    crudini --set /etc/neutron/neutron.conf DEFAULT auth_strategy keystone
    crudini --set /etc/neutron/neutron.conf DEFAULT notify_nova_on_port_status_changes true
    crudini --set /etc/neutron/neutron.conf DEFAULT notify_nova_on_port_data_changes true
    crudini --set /etc/neutron/neutron.conf keystone_authtoken www_authenticate_uri http://${CONTROLLER_IP}:5000
    crudini --set /etc/neutron/neutron.conf keystone_authtoken auth_url http://${CONTROLLER_IP}:5000
    crudini --set /etc/neutron/neutron.conf keystone_authtoken memcached_servers ${CONTROLLER_IP}:11211
    crudini --set /etc/neutron/neutron.conf keystone_authtoken auth_type password
    crudini --set /etc/neutron/neutron.conf keystone_authtoken project_domain_name default
    crudini --set /etc/neutron/neutron.conf keystone_authtoken user_domain_name default
    crudini --set /etc/neutron/neutron.conf keystone_authtoken project_name service
    crudini --set /etc/neutron/neutron.conf keystone_authtoken username neutron
    crudini --set /etc/neutron/neutron.conf keystone_authtoken password ${OPENSTACK_PASSWORD}
    crudini --set /etc/neutron/neutron.conf nova auth_url http://${CONTROLLER_IP}:5000
    crudini --set /etc/neutron/neutron.conf nova auth_type password
    crudini --set /etc/neutron/neutron.conf nova project_domain_name default
    crudini --set /etc/neutron/neutron.conf nova user_domain_name default
    crudini --set /etc/neutron/neutron.conf nova region_name RegionOne
    crudini --set /etc/neutron/neutron.conf nova project_name service
    crudini --set /etc/neutron/neutron.conf nova username nova
    crudini --set /etc/neutron/neutron.conf nova password ${OPENSTACK_PASSWORD}
    crudini --set /etc/neutron/neutron.conf oslo_concurrency lock_path /var/lib/neutron/tmp

    # plugin 파일 수정
    crudini --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 type_drivers flat,vlan,vxlan
    crudini --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 tenant_network_types vxlan
    crudini --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 mechanism_drivers linuxbridge,l2population
    crudini --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 extension_drivers port_security
    crudini --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2_type_flat flat_networks provider
    crudini --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2_type_vxlan vni_ranges 1:1000
    crudini --set /etc/neutron/plugins/ml2/ml2_conf.ini securitygroup enable_ipset true
    crudini --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini linux_bridge physical_interface_mappings provider:${CONTROLLER_INTERFACE}
    crudini --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini vxlan enable_vxlan true
    crudini --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini vxlan local_ip ${CONTROLLER_IP}
    crudini --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini vxlan l2_population true
    crudini --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini securitygroup enable_security_group true
    crudini --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini securitygroup firewall_driver neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
    sysctl net.bridge.bridge-nf-call-iptables
    sysctl net.bridge.bridge-nf-call-ip6tables

    # agent 파일 수정
    crudini --set /etc/neutron/l3_agent.ini DEFAULT interface_driver linuxbridge
    crudini --set /etc/neutron/dhcp_agent.ini DEFAULT interface_driver linuxbridge
    crudini --set /etc/neutron/dhcp_agent.ini DEFAULT dhcp_driver neutron.agent.linux.dhcp.Dnsmasq
    crudini --set /etc/neutron/dhcp_agent.ini DEFAULT enable_isolated_metadata true
    crudini --set /etc/neutron/metadata_agent.ini DEFAULT nova_metadata_host ${CONTROLLER_IP}
    crudini --set /etc/neutron/metadata_agent.ini DEFAULT metadata_proxy_shared_secret ${OPENSTACK_PASSWORD}

    # nova.conf 파일 수정
    crudini --set /etc/nova/nova.conf neutron auth_url http://${CONTROLLER_IP}:5000
    crudini --set /etc/nova/nova.conf neutron auth_type password
    crudini --set /etc/nova/nova.conf neutron project_domain_name default
    crudini --set /etc/nova/nova.conf neutron user_domain_name default
    crudini --set /etc/nova/nova.conf neutron region_name RegionOne
    crudini --set /etc/nova/nova.conf neutron project_name service
    crudini --set /etc/nova/nova.conf neutron username neutron
    crudini --set /etc/nova/nova.conf neutron password ${OPENSTACK_PASSWORD}
    crudini --set /etc/nova/nova.conf neutron service_metadata_proxy true
    crudini --set /etc/nova/nova.conf neutron metadata_proxy_shared_secret ${OPENSTACK_PASSWORD}

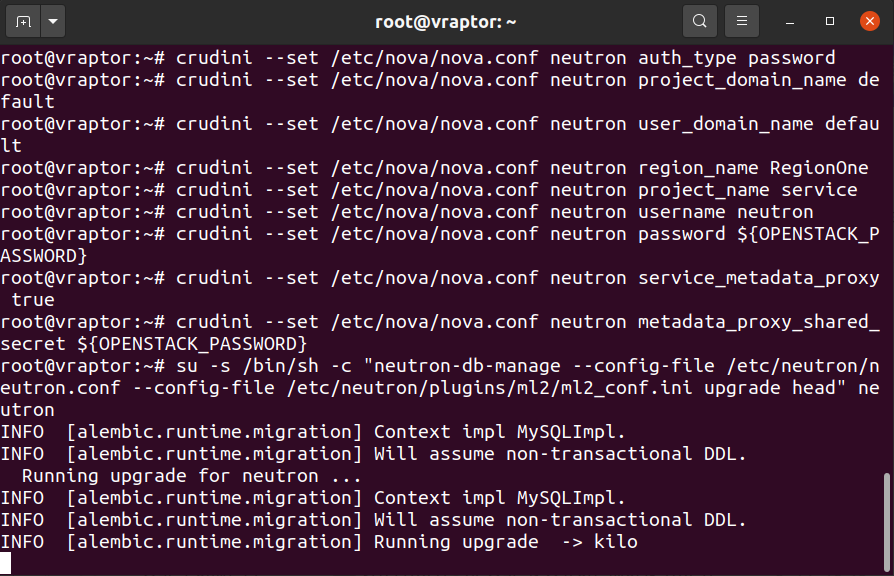

  • 데이터베이스 설정

    su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron


    •

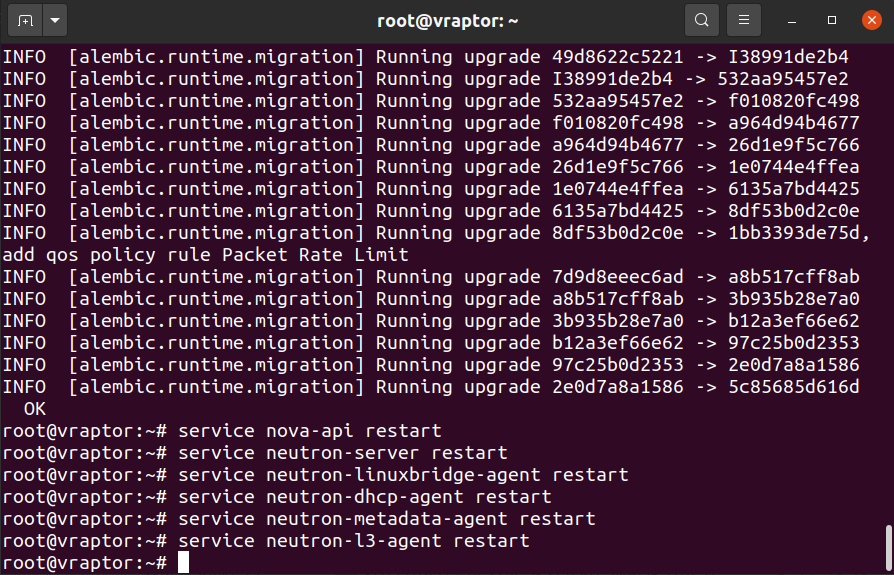

  • 서비스 재시작

    service nova-api restart
    service neutron-server restart
    service neutron-linuxbridge-agent restart
    service neutron-dhcp-agent restart
    service neutron-metadata-agent restart
    service neutron-l3-agent restart


    •
